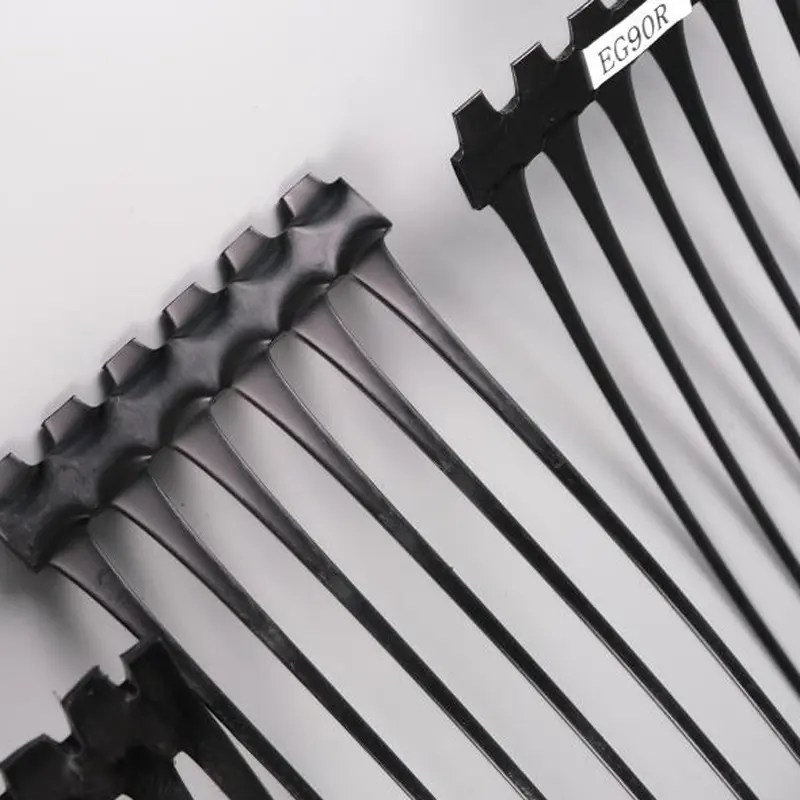

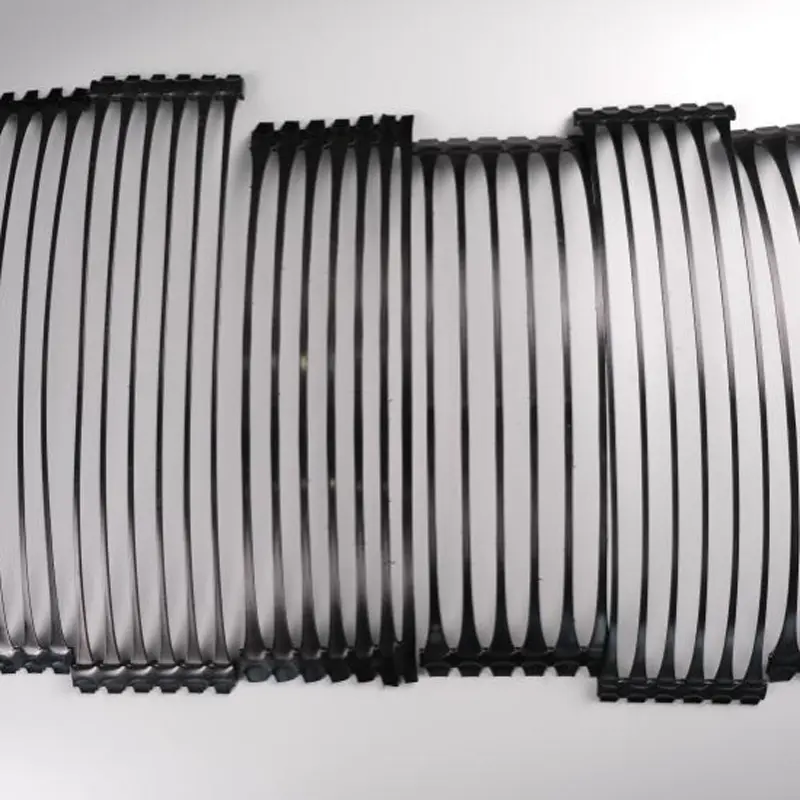

Uniaxial Strhetc Geogrid Reinforcement Civil Engineering

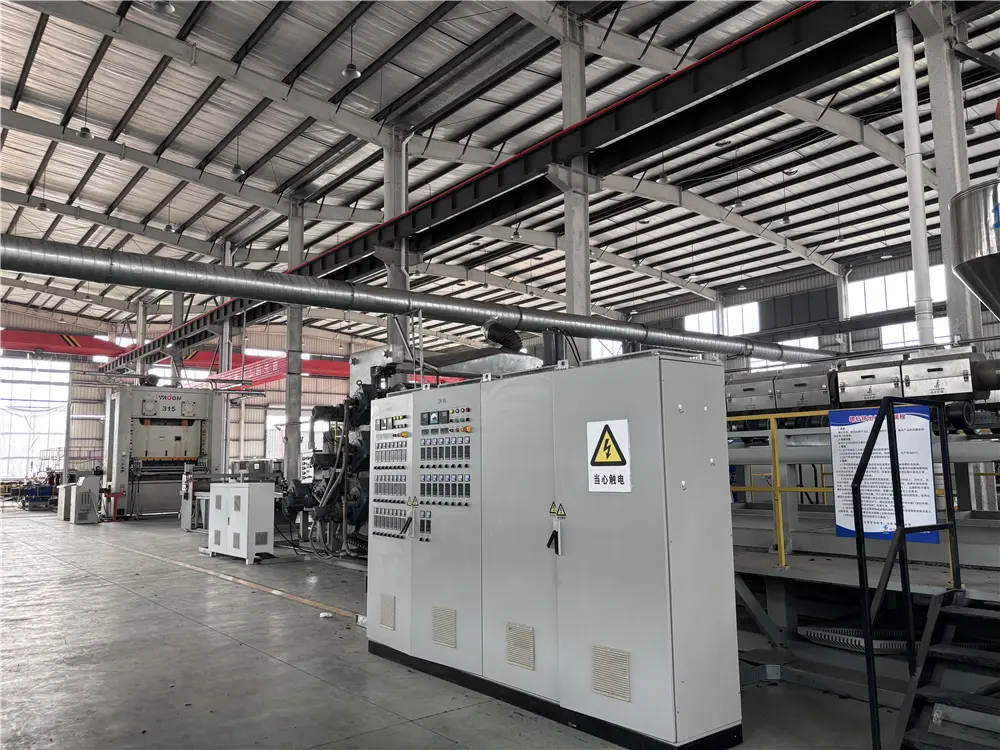

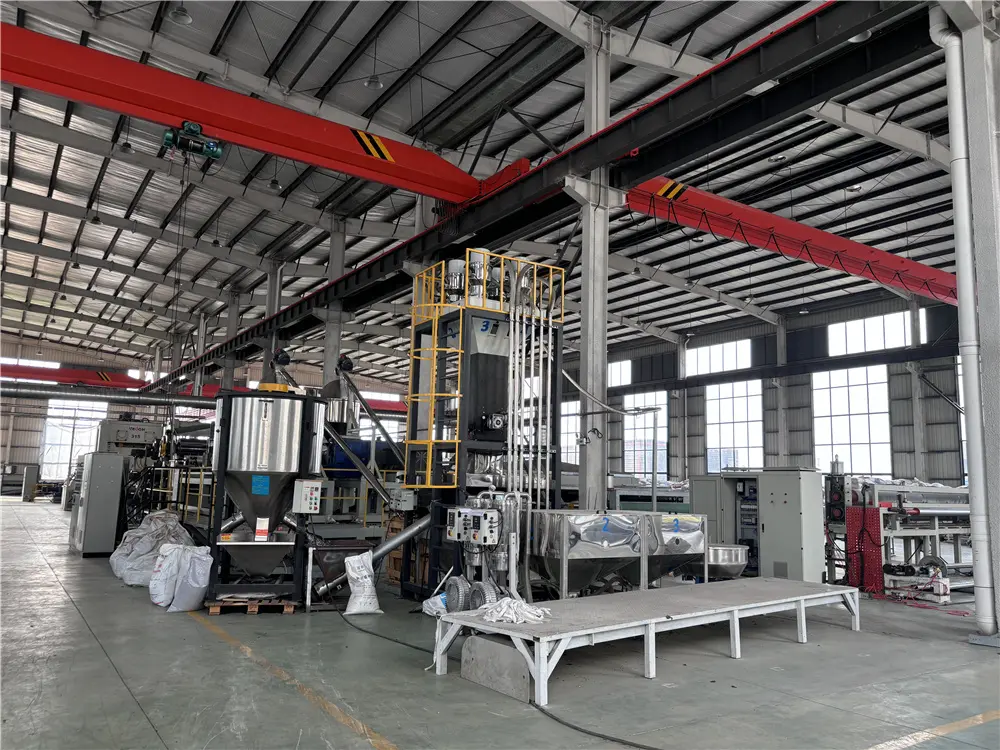

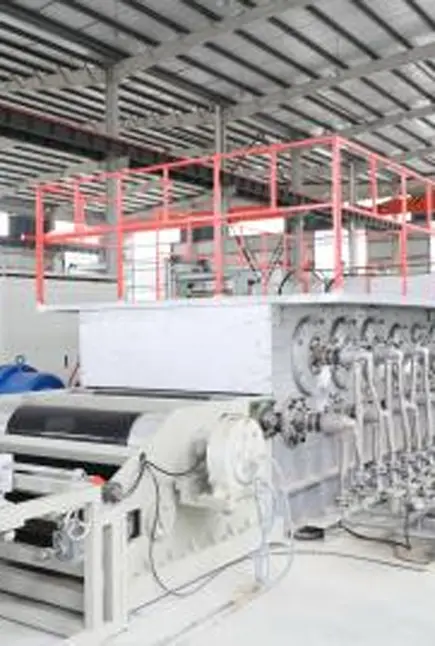

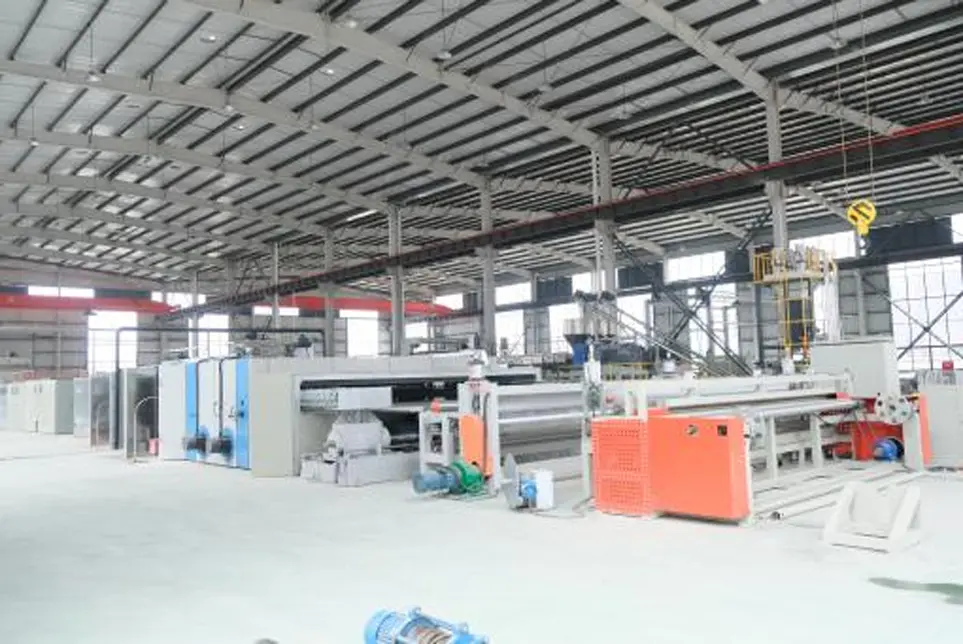

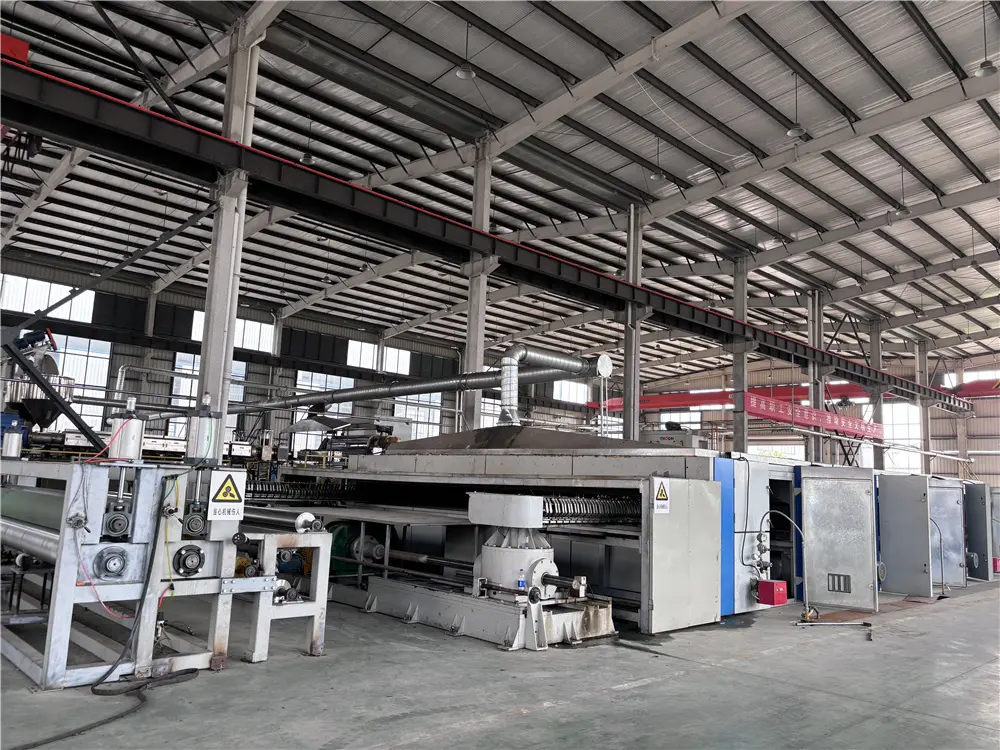

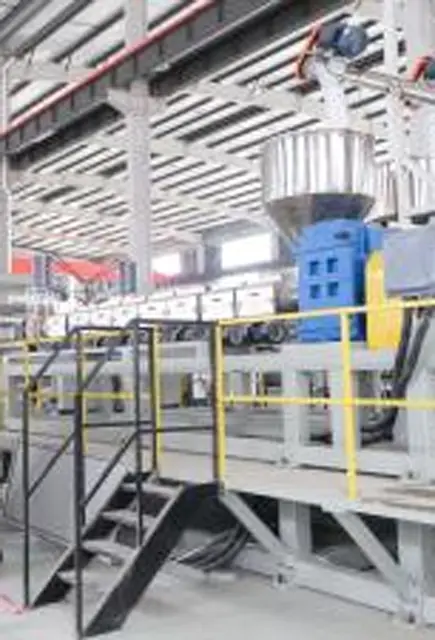

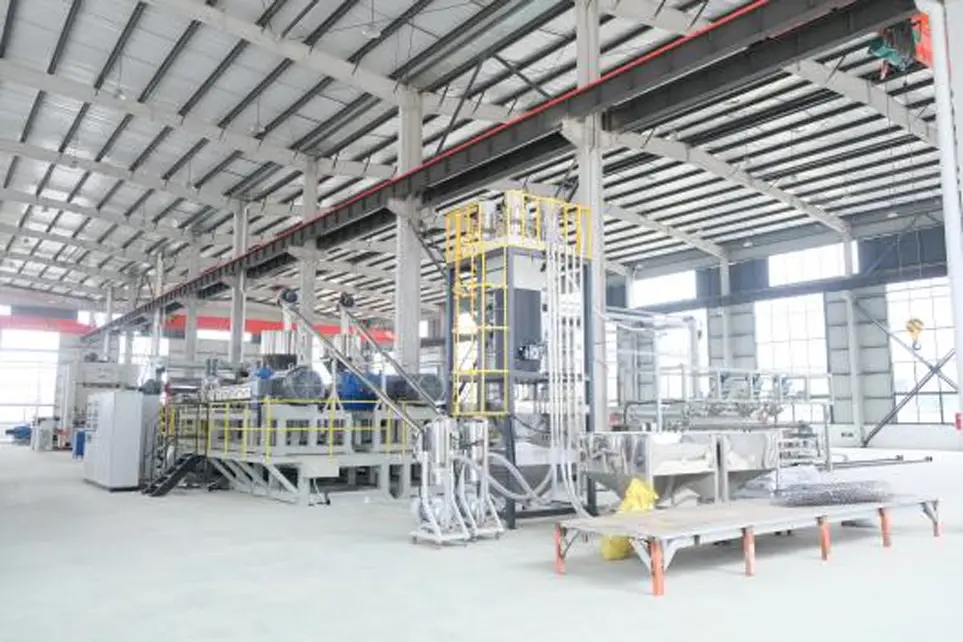

Our company adopts latest domestic production equipment.
In order to ensure 100% product pass rate, quality control department of the company to implement the production line inspection and random inspection of finished products, for the quality of product of the “Zhonglong” brand to provide double insurance.
Technical Parameter
Uniaxial Stretch Geogrid (PP)
|
No. |
Specifications |
Tensile Strength (KN/m) |
Tensile Strength at 2% Elongation (KN/m) |
Tensile Strength at 5% Elongation (KN/m) |
Nominal elongation rate （%） |
|
1 |
TGDG 35 |
≥35.0 |
≥10.0 |
≥22.0 |
≤10.0 |
|
2 |
TGDG 50 |
≥50.0 |
≥12.0 |
≥28.0 |
|
|
3 |
TGDG 80 |
≥80.0 |
≥26.0 |
≥48.0 |
|
|
4 |
TGDG 120 |
≥120.0 |
≥36.0 |
≥72.0 |
|
|
5 |
TGDG 160 |
≥160.0 |
≥45.0 |
≥90.0 |
|
|
6 |
TGDG 200 |
≥200.0 |
≥56.0 |
≥112.0 |
Uniaxial Stretch Geogrid (HDPE)
|
No. |
Specifications |
Tensile Strength (KN/m) |
Tensile Strength at 2% Elongation (KN/m) |
Tensile Strength at 5% Elongation (KN/m) |
Nominal elongation rate （%） |
|
1 |
TGDG 35 |
≥35.0 |
≥7.5 |
≥21.5 |
≤11.5 |
|
2 |
TGDG 50 |
≥50.0 |
≥12.0 |
≥23.0 |
|
|
3 |
TGDG 80 |
≥80.0 |
≥21.0 |
≥40.0 |
|
|
4 |
TGDG 120 |
≥120.0 |
≥33.0 |
≥65.0 |
|
|
5 |
TGDG 160 |
≥160.0 |
≥47.0 |
≥93.0 |
